VIS Hydraulics SVT0.S08

Product specifications

Product Attributes			Test method
Weight (Kg)		0.11
Installation torque (Nm)		40 To 45
Filtration		20/18/15 ISO 4406 (maximum filtration admitted)
Orientation		Norestrictions
Oil Testing Conditions		ISOVG46cSt
Fluid		Mineral

Pressure Attributes			Test method
Max Pressure (Bar)		350

Flow Attributes			Test method
Max Flow (l/min)		40
Viscosities (cSt)		7.4 To 420

Product Description

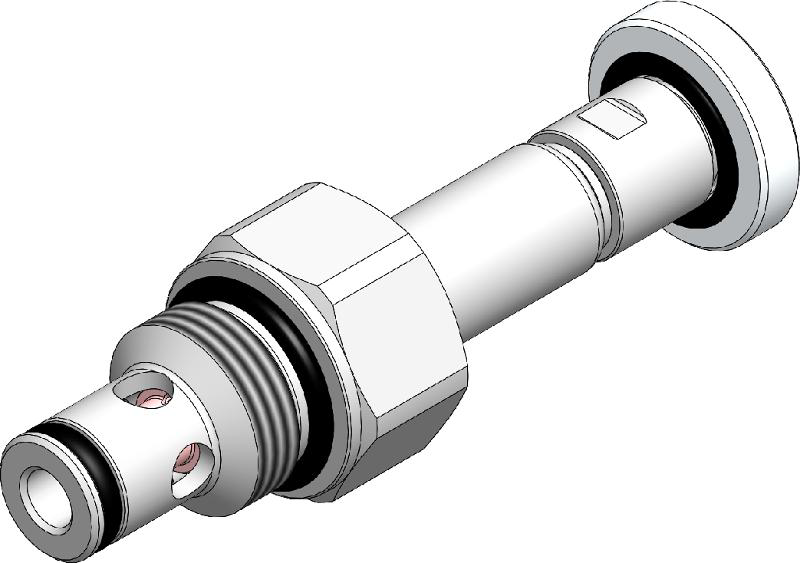

A solenoid valve operated, 2-way 2-positions, normally closed, piloted poppet type, screw-in cartridge valve. Typically used as ablocking or load holding device for high pressure circuits. When the coil is de-energized, the SVT0.S08 acts as check valve allowingfree flow from 1 to 2, while blocking from 2 to 1. When the coil is energized the poppet lifts and opens both the 2 to 1 and the 1 to 2flow paths. The rigid design using a 1-piece body contributes to minimize the effect of eccentricities in cavity and provides greatreliability. Low pressure drop thanks to optimized flow path.

Product	Filter Type	Option Code	Option Code	Override Type	Max Pressure Bar

SVT0.M18.00.F00	Standard filter (mesh size 280 μm)	M18	METRIC M18x1,5 with Ø12,9 nose size	No override	350
SVT0.M18.00.N00	No filter	M18	METRIC M18x1,5 with Ø12,9 nose size	No override	350
SVT0.M18.01.F00	Standard filter (mesh size 280 μm)	M18	METRIC M18x1,5 with Ø12,9 nose size	Screw	350
SVT0.M18.01.N00	No filter	M18	METRIC M18x1,5 with Ø12,9 nose size	Screw	350
SVT0.M18.02.F00	Standard filter (mesh size 280 μm)	M18	METRIC M18x1,5 with Ø12,9 nose size	Push and Twist	350
SVT0.M18.02.N00	No filter	M18	METRIC M18x1,5 with Ø12,9 nose size	Push and Twist	350
SVT0.M18.06.F00	Standard filter (mesh size 280 μm)	M18	METRIC M18x1,5 with Ø12,9 nose size	Pull and Hold (max. operating pressure: 300 bar)	350
SVT0.M18.06.N00	No filter	M18	METRIC M18x1,5 with Ø12,9 nose size	Pull and Hold (max. operating pressure: 300 bar)	350
SVT0.M18.09.F00	Standard filter (mesh size 280 μm)	M18	METRIC M18x1,5 with Ø12,9 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	350
SVT0.M18.09.N00	No filter	M18	METRIC M18x1,5 with Ø12,9 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	350
SVT0.M18.0A.F00	Standard filter (mesh size 280 μm)	M18	METRIC M18x1,5 with Ø12,9 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	350
SVT0.M18.0A.N00	No filter	M18	METRIC M18x1,5 with Ø12,9 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	350
SVT0.M20.00.F00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	No override	350
SVT0.M20.00.N00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	No override	350
SVT0.M20.01.F00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Screw	350
SVT0.M20.01.N00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Screw	350
SVT0.M20.02.F00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Push and Twist	350
SVT0.M20.02.N00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Push and Twist	350
SVT0.M20.06.F00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Pull and Hold (max. operating pressure: 300 bar)	350
SVT0.M20.06.N00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Pull and Hold (max. operating pressure: 300 bar)	350
SVT0.M20.09.F00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	350
SVT0.M20.09.N00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	350
SVT0.M20.0A.F00	Standard filter (mesh size 280 μm)	M20	METRIC M20x1,5 with Ø15 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	350
SVT0.M20.0A.N00	No filter	M20	METRIC M20x1,5 with Ø15 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	350
SVT0.S08.00.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	No override	350
SVT0.S08.00.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	No override	350
SVT0.S08.01.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Screw	350
SVT0.S08.01.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Screw	350
SVT0.S08.02.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Push and Twist	350
SVT0.S08.02.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Push and Twist	350
SVT0.S08.06.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold (max. operating pressure: 300 bar)	350
SVT0.S08.06.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold (max. operating pressure: 300 bar)	350
SVT0.S08.09.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	350
SVT0.S08.09.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	350
SVT0.S08.0A.F00	Standard filter (mesh size 280 μm)	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	350
SVT0.S08.0A.N00	No filter	S08	3/4-16 UNF with Ø12,7 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	350
SVT0.S09.00.F00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	No override	350
SVT0.S09.00.N00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	No override	350
SVT0.S09.01.F00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Screw	350
SVT0.S09.01.N00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Screw	350
SVT0.S09.02.F00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Push and Twist	350
SVT0.S09.02.N00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Push and Twist	350
SVT0.S09.06.F00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Pull and Hold (max. operating pressure: 300 bar)	350
SVT0.S09.06.N00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Pull and Hold (max. operating pressure: 300 bar)	350
SVT0.S09.09.F00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	350
SVT0.S09.09.N00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Pull and Hold with screw 10-32 UNF (max. operating pressure: 300 bar)	350
SVT0.S09.0A.F00	Standard filter (mesh size 280 μm)	S09	3/4-16 UNF with Ø15,86 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	350
SVT0.S09.0A.N00	No filter	S09	3/4-16 UNF with Ø15,86 nose size	Pull and Hold with screw M8 (max. operating pressure: 300 bar)	350
