VIS Hydraulics FRD0.S08
Product specifications
| Product Attributes | Test method | ||
|---|---|---|---|
| Weight (Kg) | 0.01 | ||
| Filtration | 20/18/15 ISO 4406 (maximum filtration admitted) | ||
| Orientation | Norestrictions | ||
| Oil Testing Conditions | ISOVG46cSt | ||
| Fluid | Mineral | ||
| Pressure Attributes | Test method | ||
|---|---|---|---|
| Max Pressure (Bar) | 250 | ||
| Flow Attributes | Test method | ||
|---|---|---|---|
| Max Flow (l/min) | 12 | ||
| Viscosities (cSt) | 7.4 To 420 | ||
Product Description

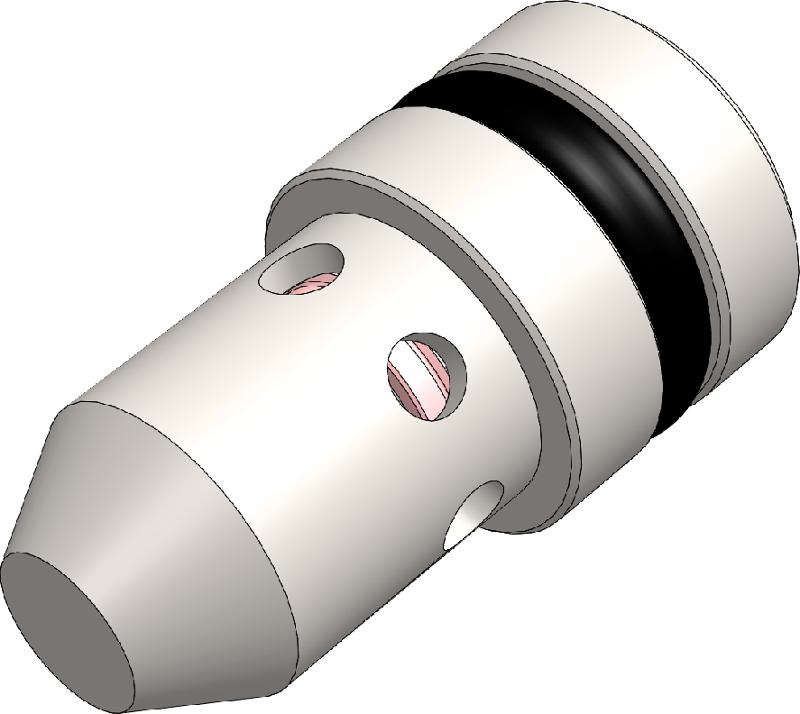

A direct acting, drop-in insert type, 2-way pressure compensated flow control valve. The flow rate of this valve in the 1 to 2 flow pathis largely independent of the system pressure and is determined by the dimension of a calibrated orifice. The valve cannot beadjusted for variable flow output. Free flow in the 2 to 1 path is allowed and not pressure compensated.
